Utility Storage SystemLiquid Cooling
Liquid-cooled battery containers for renewable integration, load shifting and grid support, from 2 to 5 MWh per container.
- systems
- 3
- energy per unit
- 2–5 MWh

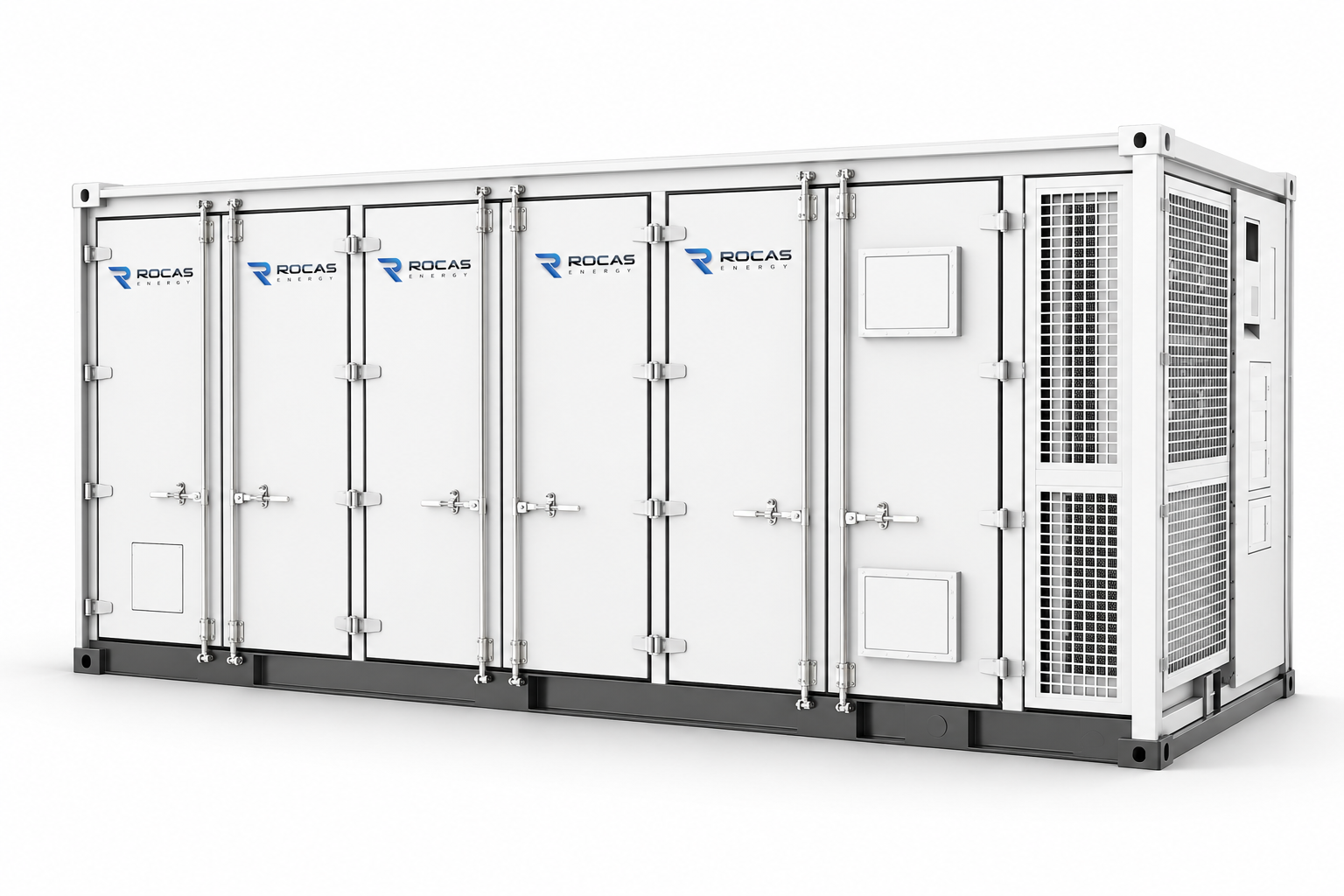

Product images are representative. Final appearance depends on the selected configuration.
Compare the range
Key ratings side by side. Open a system for the full specification and datasheet.
| System | Energy | Power | Cell | DC voltage | Dimensions (mm) | Weight | Enclosure |
|---|---|---|---|---|---|---|---|
| ROCAS 5.015MWh | 5,015.96 kWh | 2,500 kW | LFP 314 Ah | 1,123.2–1,497.6 V | 6,058 × 2,438 × 2,896 | ≤46 t | IP55 |
| ROCAS 3.34MWh | 3,343.97 kWh | 1,672 kW | LFP 314 Ah | 1,123.2–1,497.6 V | 6,058 × 2,438 × 2,896 | ≤35 t | IP55 |
| ROCAS 2MWh | 2,089 kWh | 1,000 kW | LFP 314 Ah | 702–936 V | 6,058 × 2,438 × 2,591 | ≤23 t | IP54 |
Typical applications
- Renewable integration and firming
- Energy arbitrage and load shifting
- Balancing and ancillary services
- Grid support at the connection point
Need another size?
Systems can be combined in parallel or matched to a project-specific configuration. Tell us the power, energy, connection voltage and site.
Discuss your project with ROCAS.
Power, capacity, site and timeline are enough to start. We reply with the right configuration and next steps.
